The Transparency Revolution: Reimagining the Residential Boundary

Glass garage doors plans the integration of expansive glazing into the garage aperture represents a fundamental shift in American residential architecture—a movement away from the garage as a dark, utilitarian vault toward a high-utility, light-filled extension of the living space. Glass-centric designs have transitioned from the exclusive domain of mid-century modern showcases and industrial lofts into the mainstream luxury market. This evolution is driven by a desire to dissolve the barrier between the interior sanctuary and the external landscape, utilizing the garage door as a dynamic, movable wall of glass that redefines the home’s connection to natural light.

While the aesthetic appeal of a transparent or translucent facade is immediate, the engineering required to support such a structure is profoundly complex. Unlike steel or wood doors, which rely on opaque panels for structural rigidity, a glass system must find its strength in a skeletal aluminum or steel grid. This introduces a unique set of challenges regarding dead load management, thermal conductivity, and privacy. To view these installations as mere “windows that move” is an analytical error; they are sophisticated kinetic barriers that must perform under the stresses of wind load, thermal expansion, and mechanical cycle fatigue.

Success in executing these designs depends on a rigorous planning phase that accounts for the building’s orientation, the local climate, and the intended use of the interior space. Whether the goal is to create a sun-drenched automotive gallery, a ventilated home gym, or a seamless transition to a poolside patio, the strategy must be grounded in structural reality. This editorial investigation explores the technical nuances and strategic frameworks necessary to navigate the complexities of modern glazing in the garage sector, serving as a definitive reference for those prioritizing architectural transparency.

glass garage doors plans

Developing comprehensive glass garage doors plans requires a departure from the “one-size-fits-all” procurement model common in the garage door industry. In this specialized niche, the “plan” is an architectural document that must harmonize the weight of the glass with the capabilities of the building’s header and the mechanical lift system. A primary misunderstanding is that glass doors are inherently “light.” In reality, a double-paned, tempered glass door can weigh significantly more than a standard insulated steel door. Consequently, the plans must specify high-torque torsion springs and often require structural reinforcement of the door jambs to prevent lateral shifting.

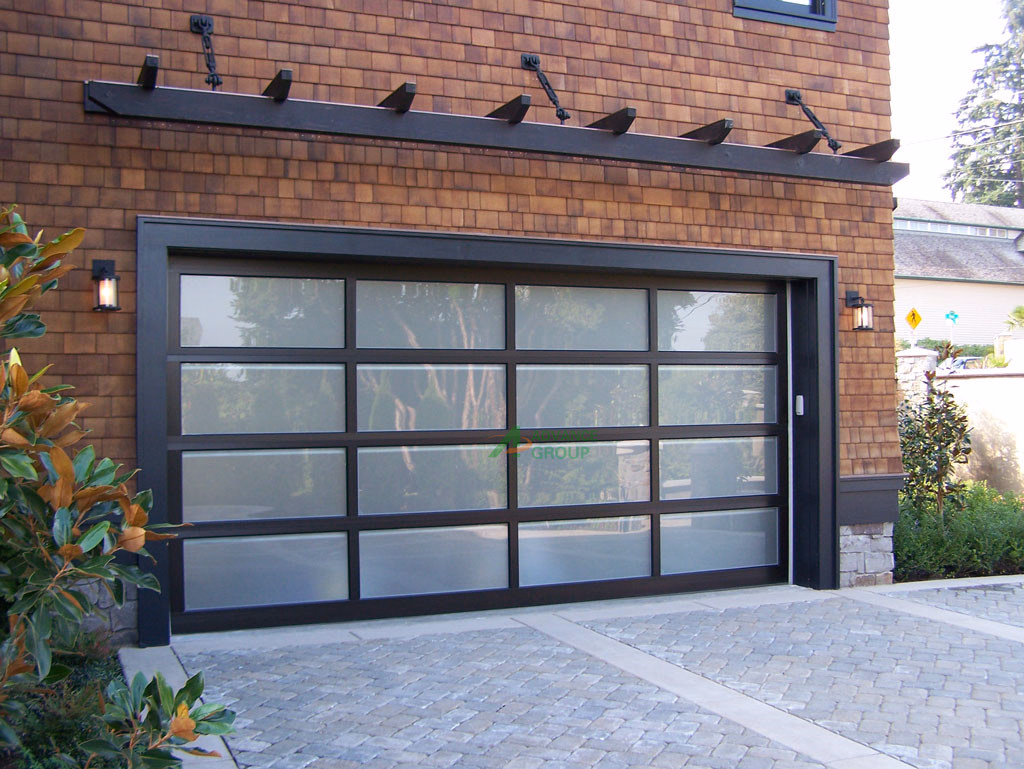

The “logic of transparency” within these plans must also address the specific privacy requirements of the property. For a suburban residence, the plan might specify “satin etched” or “frosted” glass, which permits light infiltration while obscuring the interior contents from street-level view. Conversely, a plan for a rural estate might utilize “low-iron” clear glass to provide an unobstructed view of a curated vehicle collection. The oversimplification risk here is failing to account for “visual clutter”—a glass door reveals the interior of the garage, meaning the organization of the space becomes part of the home’s exterior aesthetic.

Furthermore, glass garage doors plans must incorporate a thermal management strategy. Glass is a poor insulator compared to polyurethane-filled steel. The plan should dictate whether the installation requires “thermally broken” frames—where a non-conductive material separates the interior and exterior aluminum sections—to prevent frost buildup in winter and heat gain in summer. Without these specifications, a glass door can become a significant thermal leak, negating the efficiency of the home’s HVAC system and causing moisture condensation that can damage the door’s mechanical components.

Contextual Background: From the Auto Shop to the Art Gallery

Glass garage doors plans the lineage of the glass garage door is rooted in the “service station” aesthetic of the early-to-mid 20th century. Originally designed for commercial car washes and repair bays, these doors were purely functional: they allowed mechanics to work with natural light while keeping the bay protected from the elements. The frames were typically heavy, industrial-grade aluminum designed for high-frequency use.

The transition to the residential sector occurred alongside the rise of the “Industrial Loft” movement in the 1980s and 90s. Designers began to see the potential of these commercial doors as a way to create an “indoor-outdoor” flow in converted warehouses. In the 21st century, this aesthetic was refined by the “Modern Farmhouse” and “Coastal Contemporary” movements, which replaced the raw industrial look with sleek, powder-coated finishes and high-performance insulated glazing. Today, these doors are viewed as luxury architectural assets, often serving as the “hero” feature of a home’s facade.

Conceptual Frameworks for Transparent Apertures Glass Garage Doors Plans

To successfully manage a glass-centric project, professionals utilize several mental models:

• The Weight-to-Spring Equilibrium: Every pound of glass added to the door increases the stored energy required in the torsion springs. This framework views the door as a balanced scale where the mechanical system must perfectly counteract the dead load of the glazing.

• The Solar Gain Gradient: This model treats the garage door as a solar collector. It evaluates how much heat is entering the space at various times of the day, dictating the necessary “Shading Coefficient” or tint level of the glass.

• The Structural Deflection Framework: Aluminum frames are more flexible than steel. This framework calculates how much the door will “flex” when it is in the horizontal (open) position, ensuring that the glass does not pop out of its track under its own weight.

• The Lifecycle of Transparency: This acknowledges that glass requires more frequent cleaning than steel. It balances the aesthetic goal against the “maintenance burden” the homeowner is willing to accept.

Taxonomy of Glazing and Frame Variations

Glass doors are primarily differentiated by the “infill” material and the “extrusion” type of the frame.

Decision Logic for Glass Selection

If the garage is used as a conditioned workspace, dual-pane insulated glass with a low-E coating is mandatory. If the door is purely aesthetic and unconditioned, single-pane tempered glass is a cost-effective alternative, provided the local building code permits it for safety.

Detailed Real-World Scenarios Glass Garage Doors Plans

Scenario 1: The Multi-Purpose Home Gym

A homeowner in Southern California wants to turn their garage into a high-end gym.

• The Plan: Utilize a full-view glass door with “obscure” frosted glazing.

• The Benefit: High levels of diffused natural light without allowing passersby to see the occupants.

• Failure Mode: Failing to install a “side-mount” jackshaft opener. A standard ceiling-mount opener can interfere with the “clean” ceiling look and limit overhead space for fitness equipment.

Scenario 2: The High-Rise Urban Loft

A ground-floor unit in a converted industrial building.

• The Constraint: Extreme noise from street traffic.

• The Solution: Laminated “Acoustic Glass” (similar to a car windshield) which uses a PVB interlayer to dampen sound vibrations.

• Second-Order Effect: The increased weight of the laminated glass requires a custom, high-cycle spring system.

Scenario 3: The Northern Climate Workshop

A woodworker in Chicago needs light but faces -10°F winters.

• The Strategy: Use “Thermally Broken” aluminum frames with 1-inch thick insulated glass units.

• Constraint: Without the thermal break, the aluminum frame will “sweat” on the inside, leading to puddles on the garage floor and potential rust on the woodworker’s tools.

Planning, Cost, and Resource Dynamics

The “Glass Premium” is significant, reflecting the specialized manufacturing and installation expertise required.

Indirect Costs: Many homeowners overlook the cost of professional window cleaning. A full-view glass door may require monthly cleaning to maintain its “showroom” appeal, adding an ongoing operational expense.

Support Systems and Mechanical Integration

A glass door is only as good as the hardware supporting it.

1. High-Cycle Torsion Springs: Glass doors are heavy; 10,000-cycle springs may fail in 3-5 years. Specifying 25,000 or 50,000-cycle springs is a critical long-term strategy.

2. Long-Stem Rollers: Glass doors are susceptible to vibration. High-quality nylon rollers with long stems provide a smoother, quieter travel.

3. Reinforced Horizontal Struts: Essential for preventing the door from bowing (deflecting) when it is in the open position.

4. Weatherstripping (Jamb Seals): Because aluminum frames are rigid, they don’t always “seat” perfectly against the house. Heavy-duty vinyl seals are required to stop drafts.

5. Perimeter Drainage: If the garage floor isn’t perfectly sloped, water can pool at the bottom of the glass door, potentially damaging the bottom weatherseal and the glass-to-frame bond.

6. Direct-Drive Openers: These mount to the wall rather than the ceiling, keeping the aesthetic focused on the glass and providing a “soft start/stop” that protects the glass from jarring movements.

Risk Landscape: Fragility and Performance Failures Glass Garage Doors Plans

• Seal Failure: In insulated glass units (IGUs), the seal between the panes can fail, leading to “fogging” or condensation inside the glass that cannot be cleaned.

• Impact Sensitivity: While tempered glass is strong, it is vulnerable to edge strikes. A stray lawnmower rock hitting the edge of the frame can cause the entire pane to shatter instantly.

• Thermal Expansion Binding: Aluminum expands more than steel. If the glass garage doors plans do not allow for sufficient “gap” in the tracks, the door may bind or jam on hot summer days.

• Privacy Compromise: Mirrored glass looks great during the day, but at night, when the garage lights are on, it becomes completely transparent to people outside.

Governance: Long-Term Maintenance and Stewardship

Maintaining a glass door is more akin to maintaining a vehicle than a traditional garage door.

Quarterly Maintenance Checklist:

• Lubricate Rollers and Hinges: Use a silicone-based spray; avoid grease which attracts dirt that can scratch the aluminum finish.

• Inspect Glass Beads: Ensure the rubber or silicone “beading” that holds the glass in the frame isn’t drying out or pulling away.

• Check Spring Balance: Disconnect the opener and lift the door halfway; it should stay in place. If it falls or shoots up, the weight of the glass is no longer being properly counterbalanced.

Annual Review Cycle:

• Professional Alignment: Have a technician check that the tracks are still plumb. Even a 1/4″ shift in the house foundation can put undue stress on the glass panes.

• Seal Integrity Test: Use a thermal camera or a simple smoke pen to check for air leaks around the perimeter.

Measurement, Tracking, and Evaluation Glass Garage Doors Plans

How do you evaluate if the glass door was a successful investment?

• Leading Indicators: Energy bills during the first winter/summer cycle. If there is a massive spike, the “thermal plan” was insufficient.

• Qualitative Signal: The “Presence of Light.” Measure the lux levels in the garage during the day versus the previous door. A successful glass plan should eliminate the need for artificial lighting during daylight hours.

• Lagging Indicators: Resale value. Real estate data in the United States shows that modern “Full-View” glass doors provide one of the highest ROIs in curb appeal upgrades, often exceeding 90%.

• Documentation: Keep the manufacturer’s “Glass Specs” (the IGU data sheet). If a pane breaks in 10 years, you will need the exact thickness and tint code to match the rest of the door.

Common Misconceptions and Oversimplifications

• Myth: “Glass doors are less secure.” Correction: Tempered glass is very difficult to break through, and “laminated” glass is virtually impenetrable to smash-and-grab attempts.

• Myth: “You can’t have a glass door in a cold climate.” Correction: You can, provided you use thermally broken frames and triple-pane glass—though the cost will be significantly higher.

• Myth: “They are all made of plastic (Polycarbonate).” Correction: While polycarbonate exists, high-end “glass” doors use real tempered glass. Polycarbonate is lighter but scratches easily and can turn yellow over time.

• Myth: “I can just swap my steel door for glass.” Correction: No. You almost always need to replace the tracks, springs, and potentially the opener to handle the different weight and balance requirements.

• Myth: “Glass is too heavy for a standard header.” Correction: Most headers can handle it, but the “torsion shaft” must be heavy-duty to prevent the springs from snapping under the load.

Strategic Synthesis and Conclusion

The implementation of glass garage doors plans is an exercise in balancing the ethereal quality of light with the rigid demands of mechanical engineering. It is a commitment to a specific lifestyle—one that values transparency, modernism, and the elevation of the garage from a storage room to a gallery. When executed with precision, these doors do more than provide entry; they transform the building’s interaction with its environment, turning a static wall into a cinematic lens.

However, the success of such a project is not found in the glass itself, but in the invisible infrastructure—the springs, the thermal breaks, and the structural planning. In the American architectural landscape, the glass door remains a definitive statement of sophistication. It is a choice for those who understand that the most beautiful homes are those that breathe, letting the light in while keeping the chaos of the world—and the inefficiency of the climate—firmly at bay.
