The Invisible Barrier: Decoding the Mechanics of Photo-Eye Obstruction
How to avoid garage door sensor interference in the landscape of residential automation, the garage door safety sensor remains one of the most misunderstood components. ” This means that even the slightest disruption in its signal path results in a total cessation of downward movement. While this sensitivity is a legal and ethical necessity for the protection of life and property, it also introduces a high degree of operational volatility. When a door refuses to close, the root cause is rarely a mechanical collapse; more often, it is a nuanced failure of light transmission.
The persistence of signal integrity between the sending and receiving units depends on an environment that is rarely static. External variables—ranging from the angle of the winter sun to the microscopic particulate matter found in common household dust—act as continuous inhibitors to this invisible line of defense. To manage these systems effectively, one must look beyond the simple alignment of two plastic brackets. One must account for the electromagnetic spectrum, the physics of vibration, and the structural shifts of the building itself. A garage door that stutters or reverses unexpectedly is frequently a symptom of an environment that has become “noisy,” even if that noise is silent and invisible.
This editorial exploration moves past superficial troubleshooting to examine the systemic vulnerabilities of infrared safety systems. We will deconstruct the variables that lead to signal degradation, providing a rigorous framework for maintaining the “optical handshake” required for reliable operation. By understanding the interplay between hardware calibration and environmental stressors, property owners can move from a state of reactive frustration to one of proactive structural stewardship. The goal is to ensure that the safety system remains a silent protector rather than a frequent point of failure.
how to avoid garage door sensor interference
Mastering the complexities of residential automation requires a nuanced approach to how to avoid garage door sensor interference, a task that is significantly more involved than simply wiping a lens. At its core, interference in this context refers to anything that prevents the receiving sensor from identifying the pulsed infrared light of the sending sensor as a valid signal. This can be categorized into physical obstructions, optical “blinding,” and electrical noise. The primary challenge is that these safety systems are engineered with a zero-tolerance policy; if the signal is weakened by even 15–20%, the logic board of the opener will trigger a safety reversal.
A common misunderstanding is that sensors only fail when something is physically standing in the doorway. In reality, “optical interference” often comes from the sun. During specific times of the year, particularly at dawn or dusk, the sun’s angle can align perfectly with the lens of the receiving sensor. Because the sun is a massive emitter of infrared radiation, it “blinds” the sensor, effectively washing out the relatively weak signal from the sending unit. Strategies to mitigate this involve “sun shields” or swapping the positions of the sending and receiving units so that the receiver—the more sensitive of the two—is not staring directly into the solar path.

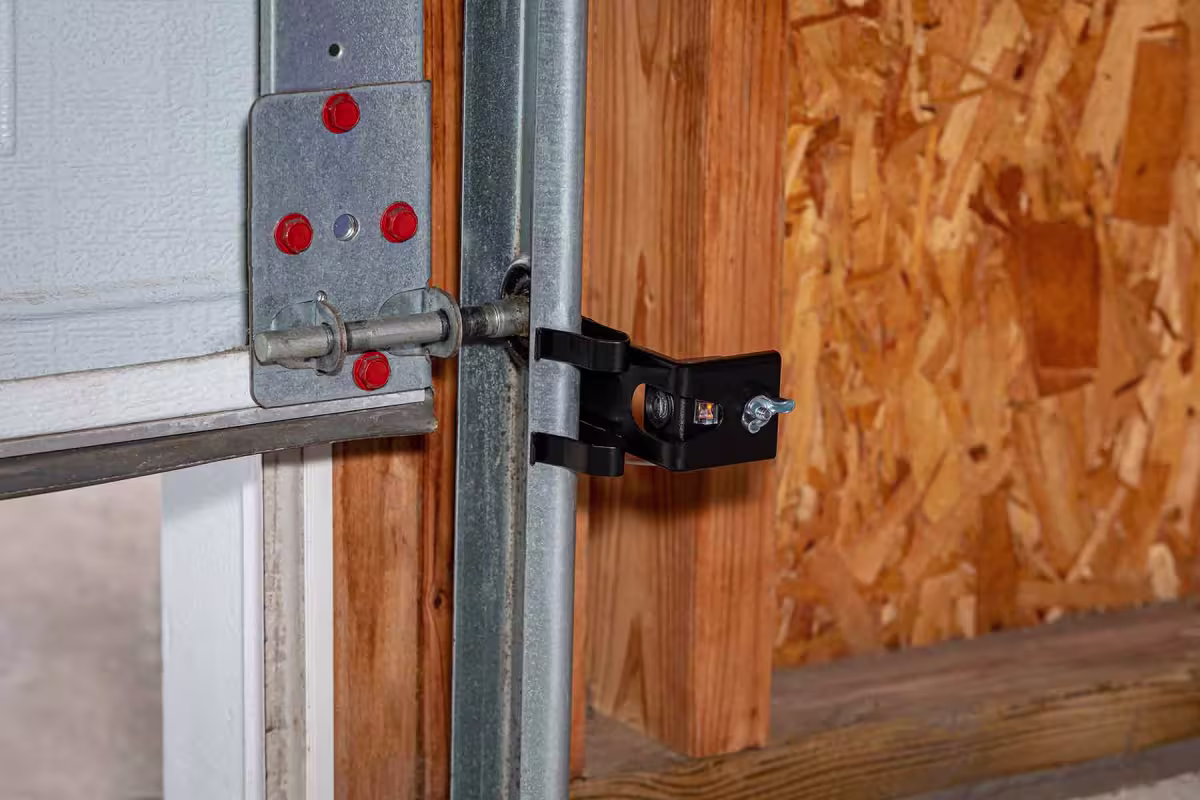

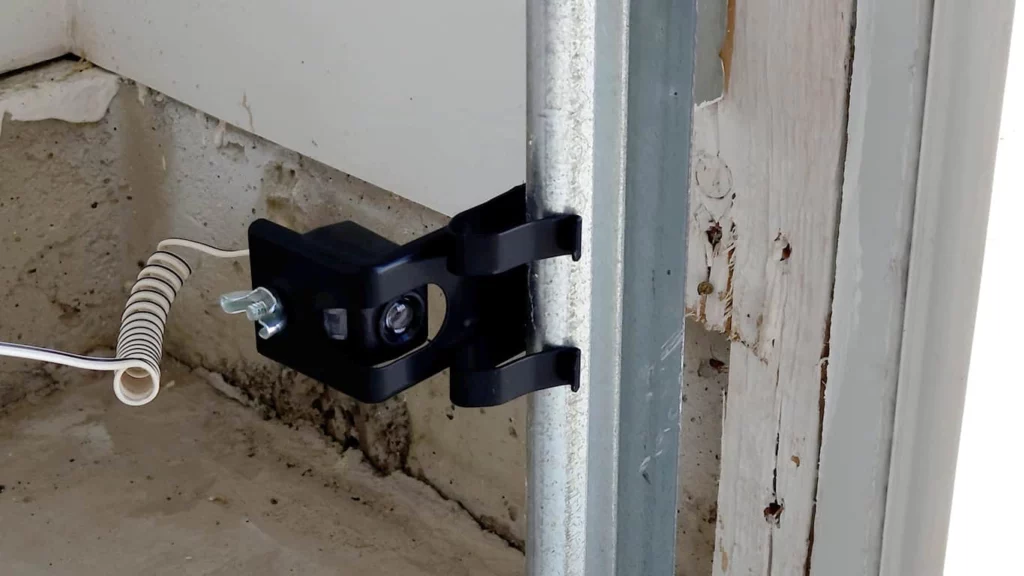

Furthermore, mechanical vibration serves as a frequent but overlooked source of interference. If the mounting brackets are attached to the track rather than the structural framing, the vibration of the door during travel can cause the sensors to oscillate. This micro-alignment shift, while temporary, is enough to break the beam for a millisecond, which is all the logic board needs to halt the motor. Managing this requires a shift from “track-mounting” to “wall-mounting” and the use of dampening materials to ensure the optical path remains rigid regardless of the kinetic energy in the system.
Deep Contextual Background: From Manual Latch to Infrared Logic
How to avoid garage door sensor interference the evolution of garage door safety was driven by the integration of high-torque electric motors into residential spaces. In the mid-20th century, garage doors operated without secondary safety systems, relying solely on the user’s oversight. This led to a series of high-profile accidents, prompting the U.S. Consumer Product Safety Commission to mandate a reversal mechanism. Initially, this was purely mechanical—a “force-sensitive” reversal that required the door to physically strike an object before stopping.
By the early 1990s, federal law (specifically UL 325) mandated the addition of “non-contact” sensors. This moved the industry into the realm of optoelectronics. The introduction of the infrared photo-eye changed the maintenance profile of the American garage. No longer was a door just a mechanical slab; it was now a digital system dependent on light-path integrity. As homes have become more “connected” and garages have been repurposed as workshops or gyms, the density of electronic and physical interference in these spaces has increased, making the original 1990s-era logic more susceptible to modern environmental noise.
Conceptual Frameworks and Mental Models How To Avoid Garage Door Sensor Interference
To analyze sensor stability, one should adopt the following diagnostic frameworks:
-
The Signal-to-Noise Ratio (SNR): Imagine the infrared beam as a voice in a crowded room. If the “room” (the garage threshold) is filled with “shouting” (bright sunlight or dust), the “voice” (the beam) cannot be heard. Improving the SNR involves either strengthening the voice or silencing the room.
-
The Line-of-Sight Constancy: This model assumes that the alignment is not a static state but a dynamic one. The building breathes, wood swells, and tracks vibrate. A stable line-of-sight must account for these micro-movements.
-
The Binary Handshake: The opener motor and the sensors are in a constant conversation. If the motor doesn’t receive a “clear” signal every few milliseconds, it assumes the worst. Troubleshooting is the art of restoring the clarity of this handshake.
-
The Environmental Envelope: View the garage threshold as a pressurized environment. Changes in humidity can cause lenses to fog; changes in temperature can cause metal brackets to expand or contract.
Taxonomy of Interference Vectors
Effective mitigation requires identifying exactly what is disrupting the infrared path.
Detailed Real-World Scenarios How To Avoid Garage Door Sensor Interference
Scenario 1: The “Sunset Trap”
A homeowner finds that the garage door works perfectly at noon and midnight but refuses to close between 5:00 PM and 6:00 PM in October.
-
The Analysis: The low autumn sun is hitting the receiving sensor lens directly.
-
The Failure: The sensor is overwhelmed by the sun’s infrared light and cannot see the sending unit’s signal.
-
Solution: Swapping the sending and receiving units (if the receiver is currently on the sun-facing side) or installing an elongated PVC shroud to create a permanent shadow over the lens.
Scenario 2: The “LED Ghost”
After replacing old incandescent garage lights with “high-efficiency” LEDs, the door begins to reverse randomly.
-
The Analysis: Many low-cost LED bulbs emit significant Electromagnetic Interference (EMI) that can interfere with the radio frequency of the sensors or the opener’s logic board.
-
Decision Point: If the sensors flicker only when the lights are on, the bulbs are the culprit.
-
Solution: Installing shielded “Garage Door Rated” LED bulbs that are specifically tested to prevent RF and optical noise.
Scenario 3: The Spider’s Web
The door reverses, but the lenses look clean from a distance.
-
The Analysis: A single, nearly invisible strand of spider silk has caught a piece of lint and is dangling in front of the lens.
-
Constraint: The vibration of the motor starting causes the silk to sway, momentarily breaking the beam.
-
Solution: Regular perimeter cleaning using compressed air rather than a cloth to avoid scratching the delicate plastic lenses.
Planning, Cost, and Resource Dynamics
Addressing sensor interference is largely a labor-intensive rather than capital-intensive task. However, the “cost of neglect” can be high if it leads to an unnecessary service call.
Range-Based Resource Allocation
Tools, Strategies, and Support Systems
To ensure long-term stability, a specific set of instrumentation is recommended for the property owner’s toolkit.
-
Laser Alignment Guide: A simple laser pointer held against the side of one sensor to see exactly where it is hitting the opposing unit.
-
Infrared Detection Card: A small card that changes color when hit by IR light, allowing you to “see” the invisible beam.
-
Microfiber Cleaning Kits: Avoids the micro-scratches that can cause light to scatter across the lens surface.
-
PVC Shrouds (3-inch): A cost-effective way to create “deep wells” for the sensors to sit in, blocking peripheral light and sun glare.
-
Ferrite Beads: Small snap-on clips for the sensor wires that can filter out electrical noise from nearby appliances.
-
Cable Management Clips: Ensuring that the bell wire running from the sensors to the motor is not dangling, which could create a physical “swing” obstruction.
Risk Landscape: Compounding Safety Failures How To Avoid Garage Door Sensor Interference
The primary risk in managing sensors is the temptation to bypass them.
-
The Forced Override Hazard: Most openers allow you to bypass a sensor failure by holding down the wall button constantly. While this “works” in an emergency, it encourages the operator to ignore a fundamental safety flaw.
-
The “Reflection” Blind Spot: If a sensor is placed too close to a glossy floor or a puddle, the beam can bounce under an object. This creates a “zombie” state where the system says it is safe, but a child or pet could be under the door.
-
The Wiring Degradation: Bell wire is fragile. Over time, the insulation can crack, leading to a “short” that looks like sensor interference but is actually a fundamental electrical failure.
Governance: Long-Term Maintenance and Adaptation
Maintaining an interference-free system requires a shift from “repair” to “governance.” This involves a structured review of the threshold environment.
The Layered Maintenance Checklist:
-
Monthly: Perform the “Safety Reverse” test using a 2×4 piece of wood or a solid object. The sensors must reverse the door before it strikes the object.
-
Quarterly: Inspect the brackets for “looseness.” Tighten the lag screws into the wall framing.
-
Seasonally: Adjust for solar shifts. A shield that worked in the winter may be insufficient for the summer sun’s higher arc.
-
Post-Cleaning: Always verify that a broom or vacuum hasn’t bumped the sensors out of alignment during routine garage cleaning.
Measurement, Tracking, and Evaluation
How do you evaluate the “health” of an infrared beam?
-
Leading Indicators: Observe the LED lights on the sensor units. Most have a green/amber system. A flickering or dimming LED, even when the door is working, indicates a “near-failure” state where alignment is marginal.
-
Qualitative Signals: Listen for the “click” of the logic board. A healthy system has a crisp, immediate response. Delay or multiple clicks suggest the logic board is struggling to interpret a noisy signal.
-
Documentation: Keep a small log of when “ghost reversals” occur. If they happen every day at 4:30 PM, you have an optical solar issue. If they happen during heavy rain, you have a moisture/condensation issue.
Common Misconceptions and Oversimplifications How To Avoid Garage Door Sensor Interference
-
Myth: “Windex is the best way to clean lenses.” Correction: The ammonia in some glass cleaners can degrade the plastic polymer of the lens over years of use. Use a dry microfiber cloth or a dedicated electronics cleaner.
-
Myth: “Sensors are only for children and pets.” Correction: Sensors protect the structural integrity of the door itself. Closing a door on a forgotten trash can or a car bumper can warp the panels, leading to a $2,000 replacement.
-
Myth: “If the lights are on, they are aligned.” Correction: A sensor can have enough light to turn on its LED but not enough “signal strength” to satisfy the motor’s logic board during the vibration of travel.
-
Myth: “Interference is always a hardware problem.” Correction: Often, the problem is environmental—smoke, fog, heavy dust, or even “heat shimmer” from a hot driveway can interfere with the infrared beam.
Synthesis and Final Synthesis
The path to a reliable overhead door system is paved with attention to the invisible. Understanding how to avoid garage door sensor interference is an exercise in managing the subtle variables of light and energy. By treating the safety sensors as a high-precision optical system rather than a crude hardware attachment, the homeowner ensures the longevity of the entire mechanical assembly.
The goal is systemic resilience: a state where the garage door operates with boring, predictable consistency. This is achieved not through expensive overhauls, but through the patient calibration of alignment, the strategic shielding against solar noise, and the diligent maintenance of the lenses.
